U-bolts built to the tube, not the catalogue

Kap Components manufacturing & supplying Custom Round bend U-Bolts, square bend U-Bolts and stainless U-bolts, made to your inside diameter and inside height rather than a nominal pipe size that never quite fits..

View the range Request a quote
Diagram comparing five U-bolt styles: round bend for pipes, square bend for square tubing, semi-round for leaf springs, forged for truck axles, and flat for flat surfaces
Five common U-bolt profiles and what each one clamps

The range

Three U-bolts, three jobs

Every U-bolt below is available to custom thread, diameter and height on request.

Stainless steel 304 U-bolt with two hex nuts and flat washers fitted, shown against a white background

304 Stainless Steel U-Bolt

Corrosion-resistant ss round bend U-bolt in 304 grade , supplied complete with nuts and washers. Suited to marine, washdown and outdoor fixings where zinc plating won't hold up.

Grade ss 304 Round bend u bolt
Zinc-plated square bend U-bolt with a mounting plate, two washers and two hex nuts, shown against a white background

Square Bend U-Bolts, Zinc /Hot Dip galvanized

Square-profile U-bolt with a flat backing plate, built to wrap square and rectangular tube cleanly on all four faces. Bright zinc plating for everyday indoor and light outdoor use.

Zinc-plated · Square bend

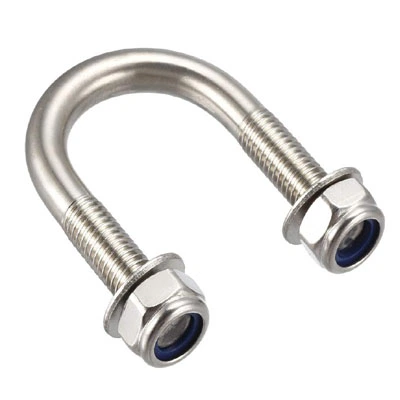

Polished stainless steel round U-bolt with two hex nuts threaded on, shown against a white background

Stainless 304/316 Round U-Bolts

Standard round bend profile for pipe and round bar clamping, polished stainless finish. The everyday choice for pipework supports and general round-section fixing.

Stainless · Round bend

Specification

What actually defines a U-bolt

A U-bolt is a bolt bent into the shape of the letter U, with screw threads cut into both ends. U-bolts have historically been used to support pipework, which is why U-bolt sizes are often quoted in pipe measurements. A pipework engineer might ask for a "40 Nominal Bore" U-bolt, and only another pipework engineer would know exactly what that means — in practice, the nominal bore figure bears little relation to the bolt's actual dimensions.

U-bolts are now specified by a much wider range of trades to clamp tubing and round bar of every kind, so a clearer, more direct measurement system is needed: material, thread, inside diameter and inside height, set out plainly rather than translated through a pipe-sizing convention.

Beyond pipe supports, U-bolts are used to hold rebar cages in place and to mount overhead road signs, and ongoing research continues to look at novel U-bolt designs to improve interface shear resistance in steel-concrete composite beams.

  • Pipe and pipework supports
  • Rebar cage restraint
  • Overhead road sign mounting
  • Steel-concrete composite beam connections

Four elements that define any U-bolt

Material type
e.g. bright zinc-plated mild steel, or 304 stainless steel
Thread dimensions
e.g. M12 × 50 mm
Inside diameter
e.g. 50 mm — the distance between the two legs
Inside height
e.g. 120 mm

Get a quote on your U-bolt

Tell us the material, thread size, inside diameter and inside height, and we'll come back with pricing and lead time. Custom bends are welcome.
